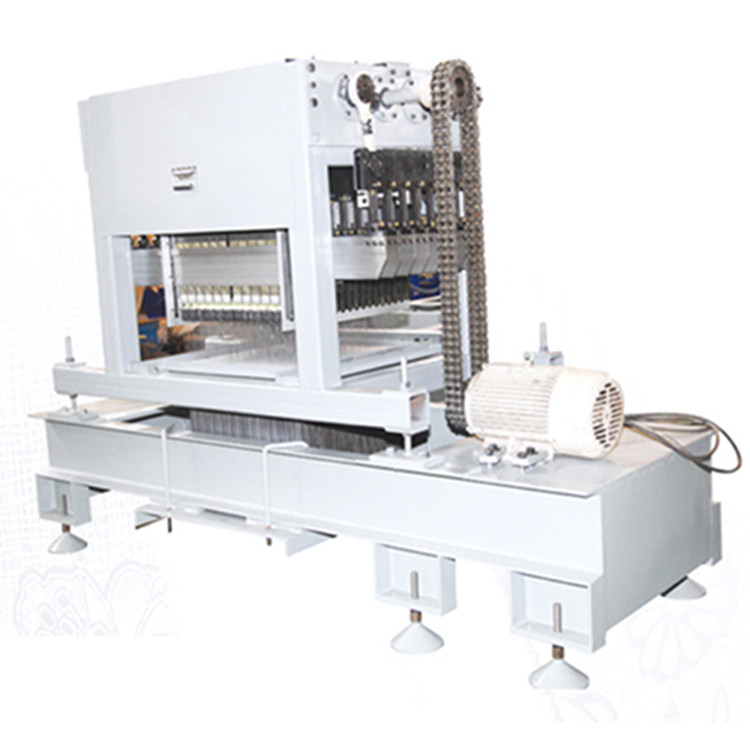

Iron Frame 120mm 12288 Hooks Electronic Jacquard Weaving Looms

WGT32A-12288 high speed electronic jacquard loom weavingmachines 12288 hooks air jet room rapier loom

Brief Introduction:
The electronic jacquard loom have various sizes of jacquard head for option and easy to adjust. The jacquard needle loom spare parts of chain link can be easily changed to pattern through pattern pieces.

Electronic Jacquard Loom Machine have strong stability can be increased the production capacity, and also can used jacquard head of suitable various series.

Features

• Newly design stand and side plate provide strong stability of the machine which increased the speed and the production capacity.

• The cover of the machine is made by ABS material and front cover is added to meet the international CE standard.

• Upper take off roller leans forward, increasing the pulling power.

• The plate of yarn feeder has redesign to steel spring, it will be more smoothly for the yarn passes at high speed.

• Various sizes of jacquard head for option, easy to adjust with the module and electric control separated and may equip with Head.

Advantages
1. The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.
2. The integration solenoid valve setting is small in size and sensitive while working.
3. Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.
4. The tension of warp is controlled automatically with the help of advanced technology
5. The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.
6. The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.
7. The woven flower shape is showed on windows directly and clearly.
8. Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.


Application

1. Luggage Straps
Luggage belt, suitcase straps, travel straps

2. Backpack Straps
Shoulder straps, sternum straps, compression straps

3. Pet leash
Tracking leash, Training leash

4. Elastic Tape
Jacquard elastic, Buttonhole elastic, Fold over elastic, Lingerie elastic

5. Shoelace
Shoestrings,bootlaces

electronic Jacquard Weaving Looms

12288 hooks Jacquard Looms

120mm Jacquard Weaving Looms

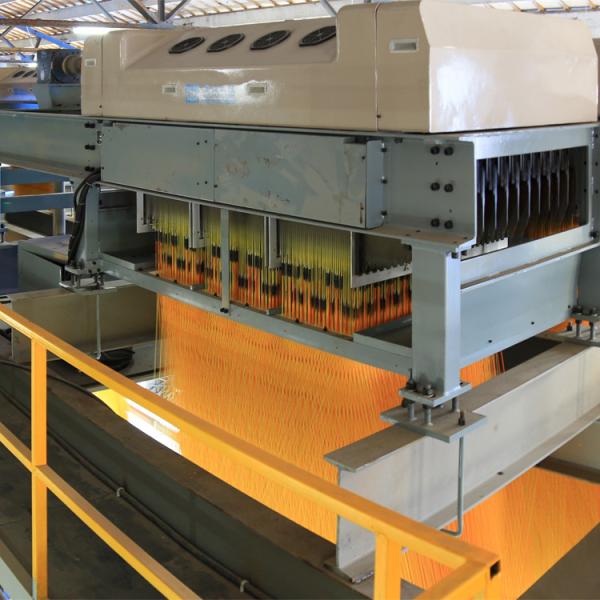

Iron Frame 120mm 12288 Hooks Electronic Jacquard Weaving Looms Images
